多仓单秤静态自动配料系统
用途与特点：

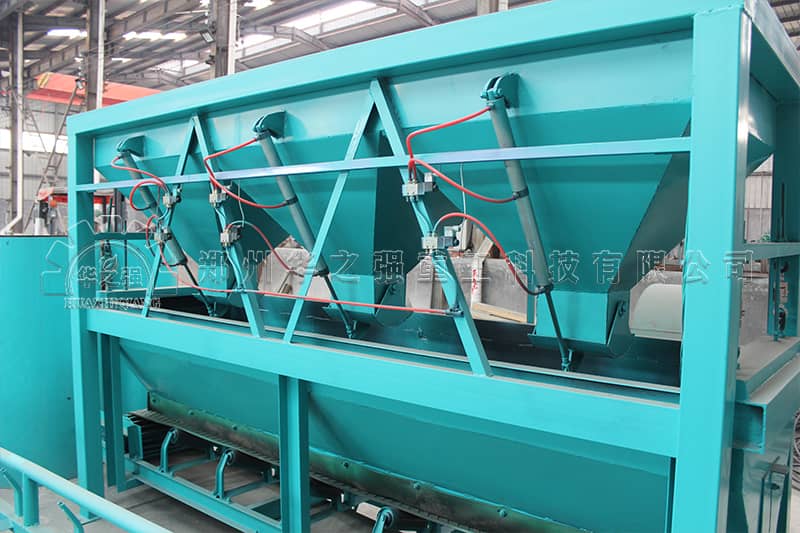

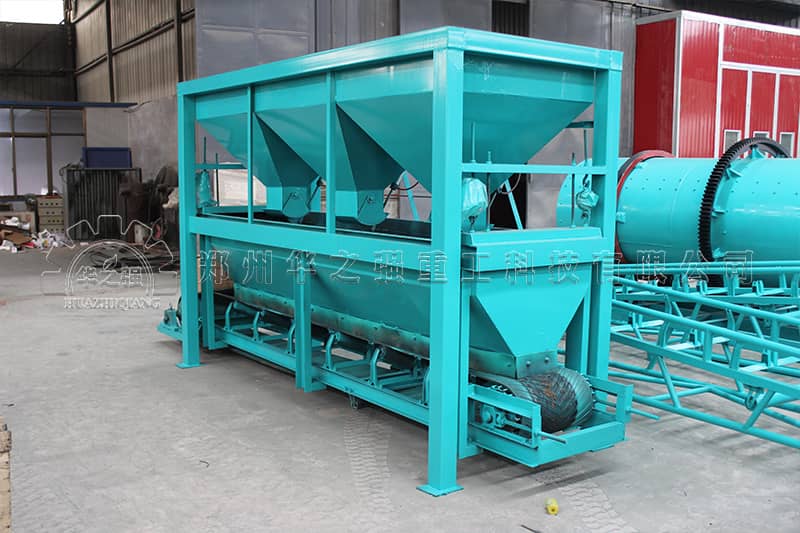

多仓单秤自动配料机主要适用于3-8种物料的混合、配料、给料。该机采用电脑秤进行自动控制，用气动门控制主料仓定量供料，物料经混合料仓混合后用皮带机自动送出。该机具有操作简单，配料精度高、物料配比可随意调整，便于安装及可移动等优点。
Batching System Series
Multiple Silos Multiple Weigh Static Automatic Batching System:
Use and Features:

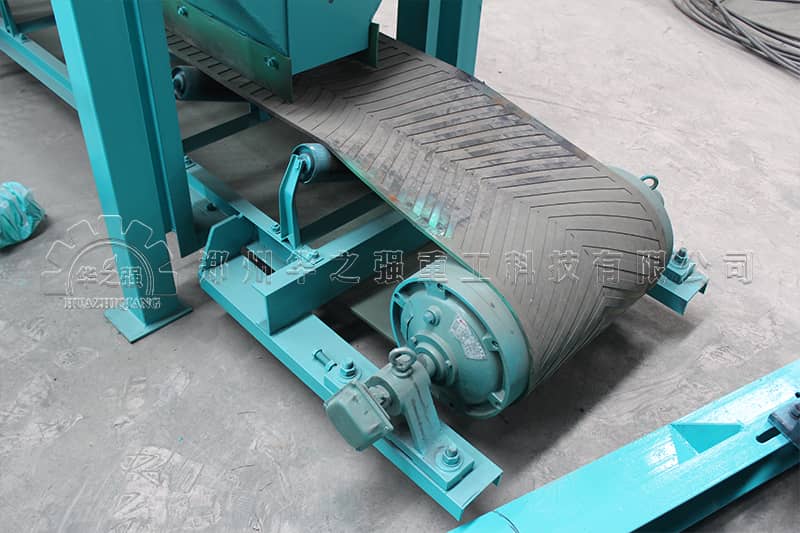

The multiple silos single weigh static batching machine is mainly suitable for mixing, batching and feeding of 3-8 kinds of materials. The system is automatically controlled by a computer scale. The pneumatic valve is used to control the material supply in the main bin. The material is mixed in the mixing bin and sent automatically by the belt conveyor. The machine has the advantages of simple operation, high batching accuracy, adjustable material ratio, easy installation and movement.
技术参数
|
型号 |
产量 （公斤/次量） |
仓数 |
功率（KW） |
外形尺寸 （长×宽×高） |
|
PLZ1000 |
500-750 |
3-8个 |
3-11 |
（3100-8100）×1200×1800 |
|
PLZB1000 |
|
|
3-11 |
（3100-8100）×1300×2500 |
|
PLZ1200 |
750-1000 |
3-8个 |
4-15 |
（3700-9700）×1300×2150 |
|
PLZB1200 |
|
|
4-22 |
（3700-9700）×1400×2850 |
|
PLZ1500 |
1000-1500 |
3-8个 |
5.5-22 |
（4500-12200）×1600×3000 |
